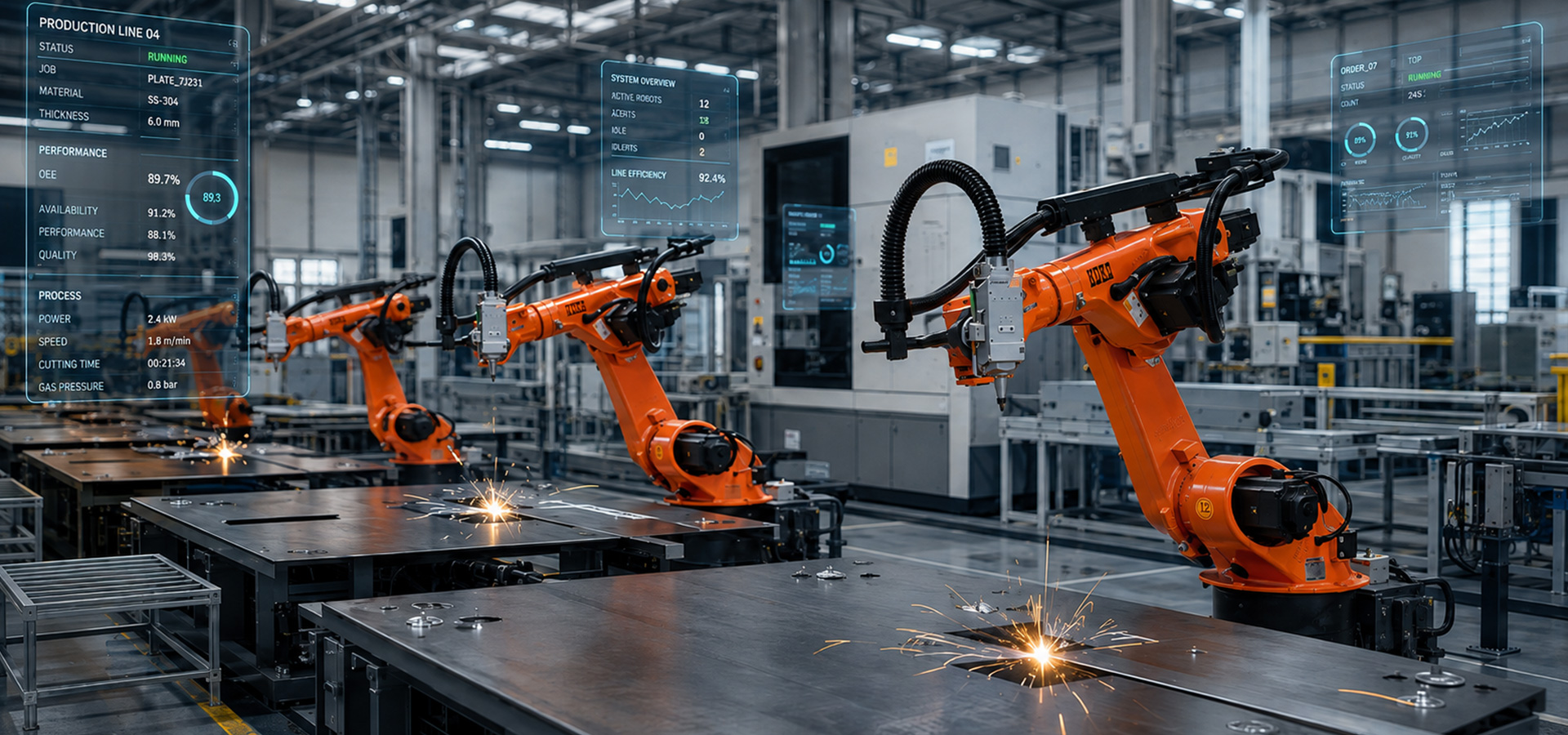

Redefining the Standard for Complex-Structure Processing

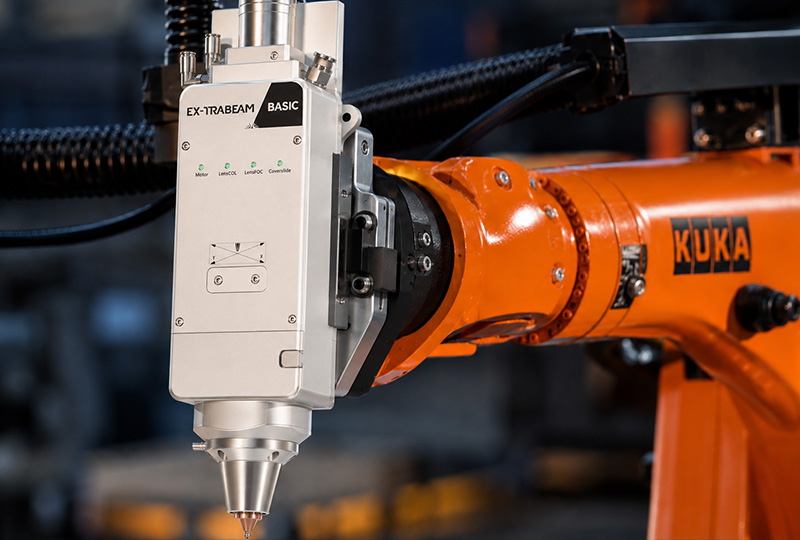

Eliminates downtime for manual focus adjustment and handles a wide range of complex-shaped parts with ease
Built with German core components and configurable with KUKA robots and German EX-TRABEAM cutting heads

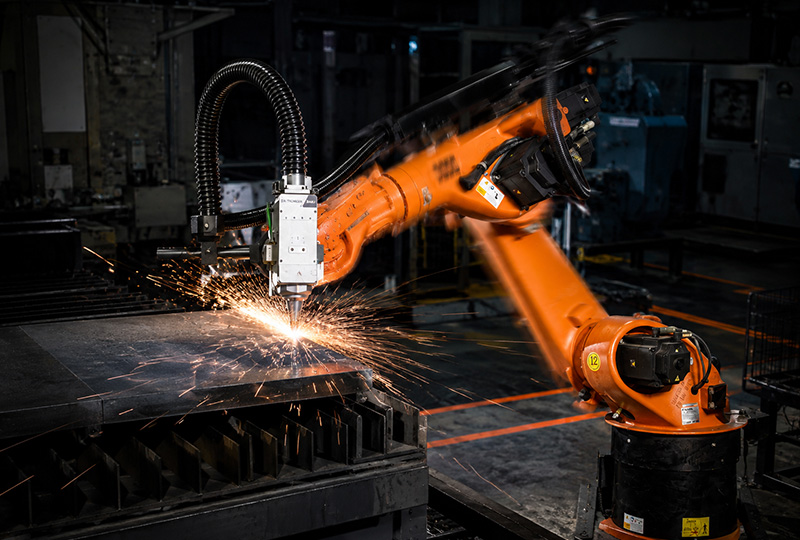

Dedicated multi-stage piercing and real-time internal lens temperature monitoring enable clean, well-formed holes from Ø5 mm in thick carbon steel and stainless steel

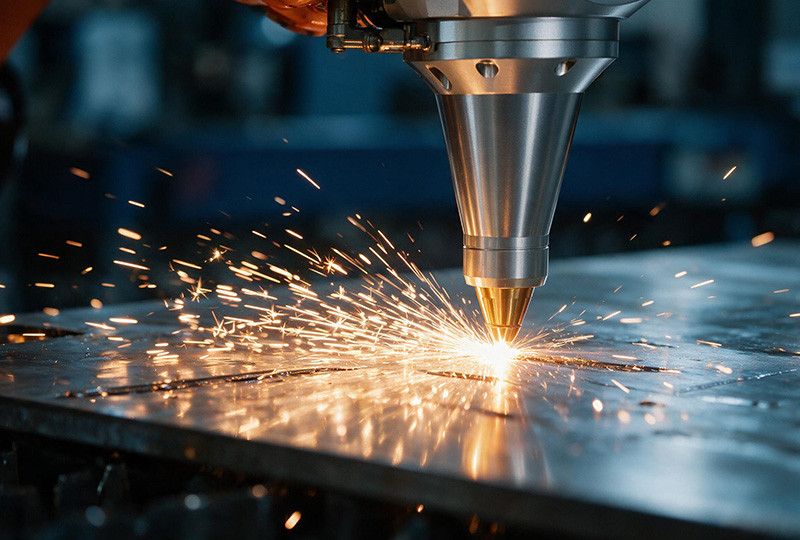

With a heat-affected zone of ≤0.3 mm, cut edges remain smooth and square, eliminating subsequent grinding and allowing parts to proceed directly to the next process, reducing production costs
Fume Emissions Compliant with Safety Standards

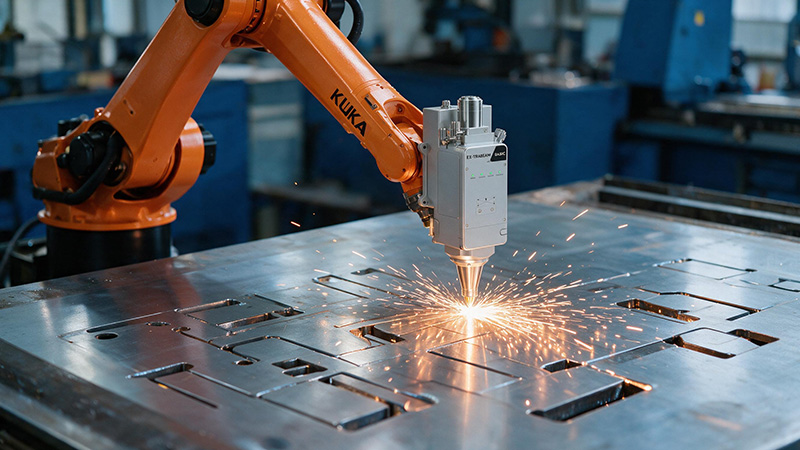

Offline programming automatically generates cutting paths for complex parts, eliminating manual teaching. The system can be configured for different materials, thicknesses and process requirements

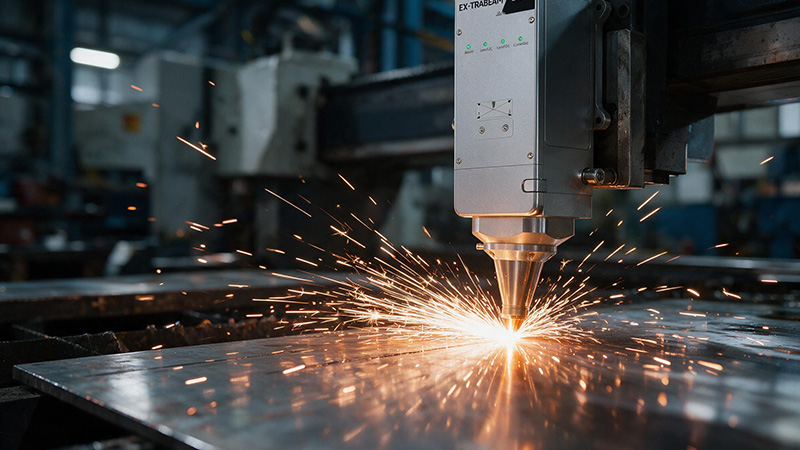

Laser cutting generates significantly less fume than plasma or flame cutting. Combined with an efficient extraction system, it provides a cleaner working environment and supports compliance with environmental and occupational safety standards
| Laser Cutter Head Model | EX-TRABEAM BASIC | EX-TRABEAM IO |
|---|---|---|
| Maximum Laser Power | 8 kW | 30 kW |
| Collimation Focal Length | 100 mm | 100 mm |
| Focus Focal Length | 150 / 200 mm | 200 / 300 mm |
| NAmax | 0.13 | 0.125 |
| Focus Adjustment Range | -32 mm - +32 mm | +23 / 50 mm@M=2.0, +50 / -18 mm@M=3.0 |
| Cover Glass Dimensions | D24.9 mm x 1.5 mm, D37 mm x 7 mm | D25 mm x 1.5 mm, D35.5 mm x 5 mm |
| Assist Gas Pressure | ≤ 30 bar | ≤ 30 bar |
| Laser Light Cable Receiver | QBH, QD | QBH, QD, Q+, LOE |
| Cutting Robot Model | KR 30 HA | KR 60 HA | KR 60 L45 HA | KR 60 L30 HA |
|---|---|---|---|---|
| Maximum Reach | 2,033 mm | 2,033 mm | 2,230 mm | 2,429 mm |
| Rated Payload | 30 kg | 60 kg | 45 kg | 30 kg |
| Suppl. Load, Arm/Link Arm/Rotating Col. | 35 / - / - kg | |||
| Suppl. Load, Srm + Link Arm, Max. | 35 kg | |||
| Maximum Total Load | 65 kg | 95 kg | 80 kg | 65 kg |
| Number of Axes | 6 | |||
| Mounting Position | Floor, Ceiling | |||
| Variant | ||||
| Positioning Repeatability | ± 0.05 mm | |||
| Path Repeatability | ± 0.16 mm | |||
| Controller | KR C2 edition2005 | |||
| Weight (Excluding Controller), Approx. | 665 kg | 665 kg | 671 kg | 679 kg |
| Temperature During Operation | +10 °C - +55 °C | |||
| Protection Classification | IP 64, IP 65 (In-line wrist) | |||
| Robot Footprint | 850 mm × 950 mm | |||
| Connection | 7.3 kVA | |||
| Noise Level | <75 dB | |||
| Axis Data | Range (software) | Speed With Rated Payload | |||
|---|---|---|---|---|---|
| 30 kg | 60 kg | 45 kg | 30 kg | ||
| Axis 1 (A1) | ±185° | 140°/s | 128°/s | 128°/s | 128°/s |
| Axis 2 (A2) | +35° / -135° | 126°/s | 102°/s | 102°/s | 102°/s |
| Axis 3 (A3) | ±158° / -120° | 140°/s | 128°/s | 128°/s | 128°/s |
| Axis 4 (A4) | ±350° | 260°/s | 260°/s | 260°/s | 260°/s |
| Axis 5 (A5) | ±119° | 245°/s | 245°/s | 245°/s | 245°/s |
| Axis 6 (A6) | ±350° | 322°/s | 322°/s | 322°/s | 322°/s |

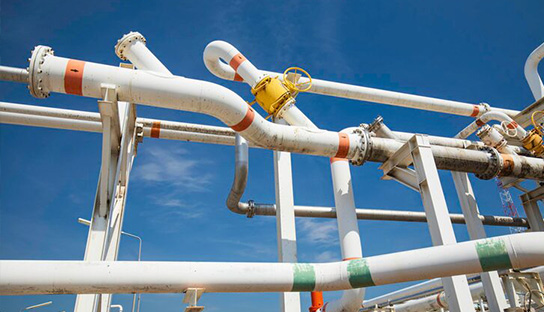

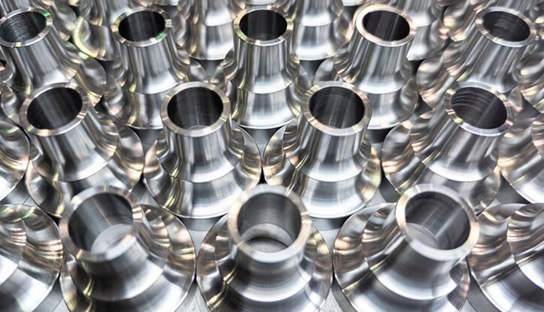

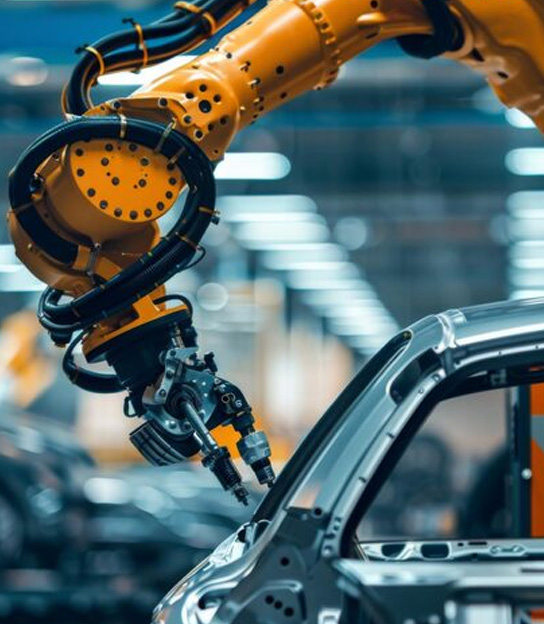

Bevel cutting of complex-shaped tubes, aerospace components, trimming and hole cutting of formed sheet-metal parts, municipal pipeline systems, pressure vessels, complex motorcycle components, oil pipelines and cast components for new-energy vehicles
